CLIP-IN SYSTEM, CONCEALED
CLIP-IN SYSTEM, CONCEALED

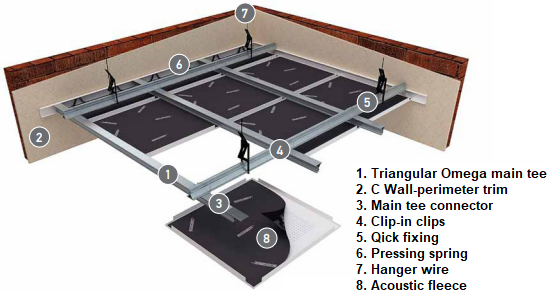

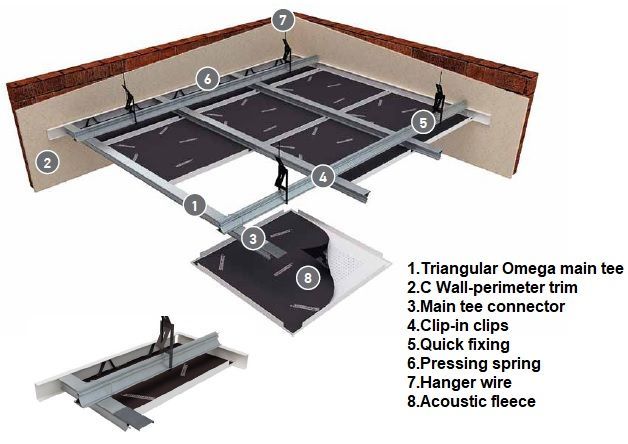

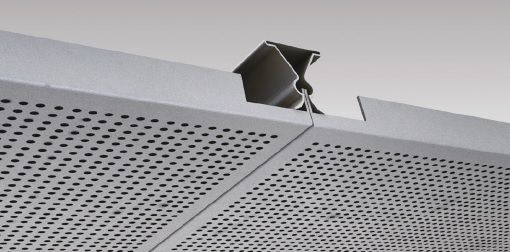

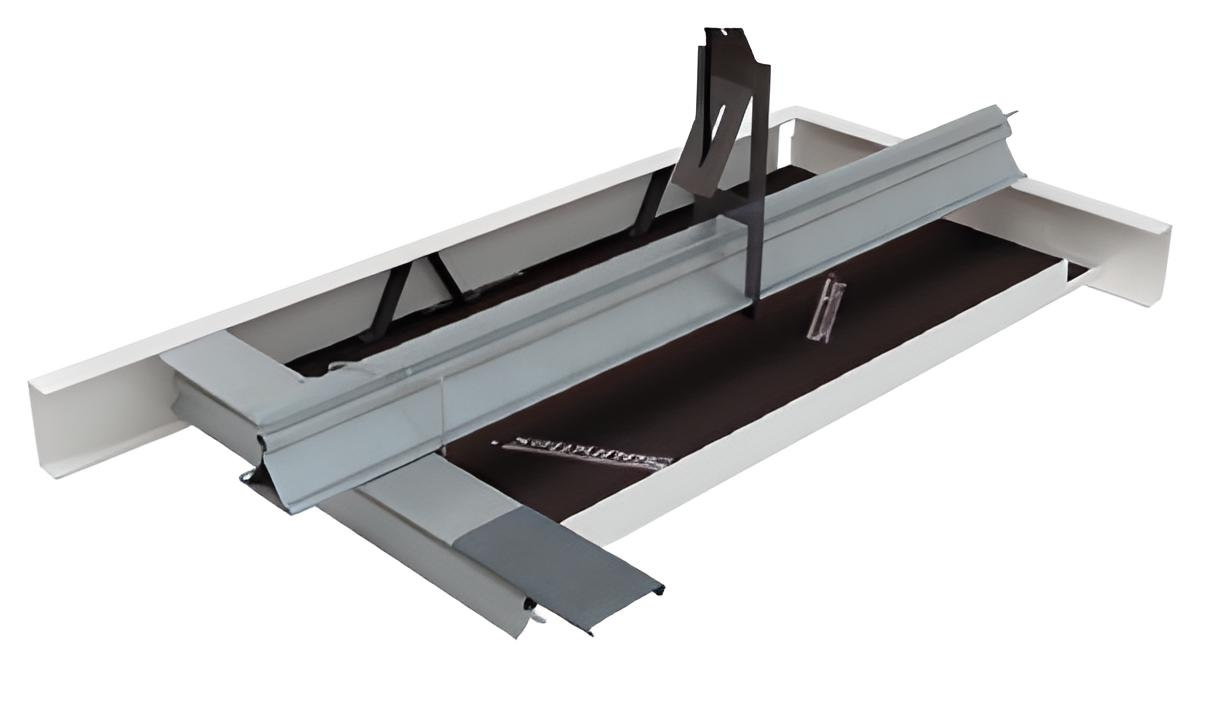

Our standard Clip in system consists of a concealed supporting structure (Spring Tee) where demountable tiles can be clipped into the triangular omega main runner. The grid system is not visible and provides a more continuous look compared to a standard grid system. All panels are singularly and independently demountable thus enabling easy and fast access to the ceiling plenum.
Data Sheet
Panel Type: 0.5 ~ 0.7 mm aluminium or galvanised steel
Panel Size: Width from 300 mm and length up to 2400 mm
Width from 600 mm and length up to 1200 mm
Grid System: Concealed grid
Perforation: Full perforated, 5 cm - 10 cm bordered, non-perforated
Ø 1.0 mm - Ø 1.5 mm
Ø 1.8 mm - Ø 2.5 mm
Under Acoustic Felt: Local, Soundtex, Royalin, Lantor acoustic and
non-flammable felt options
Certifications: CE - UKCA - ISO
Video Installation
Video Installation
DATA SHEET
Panel Type 0.5 ~ 0.7 mm aluminium or galvanised steel
Panel Size Width from 300 mm and length up to 2400 mm
Width from 600 mm and length up to 1200 mm
Grid System Concealed grid
Perforation Full perforated, 5 cm - 10 cm bordered, non-perforated
Ø 1.0 mm - Ø 1.5 mm
Ø 1.8 mm - Ø 2.5 mm
Under Acoustic Felt Local, Soundtex, Royalin, Lantor acoustic and
non-flammable felt options
Certifications CE - UKCA - ISO
