LAY-IN SYSTEM, SEMI -CONCEALED

LAY-IN SYSTEM, SEMI -CONCEALED

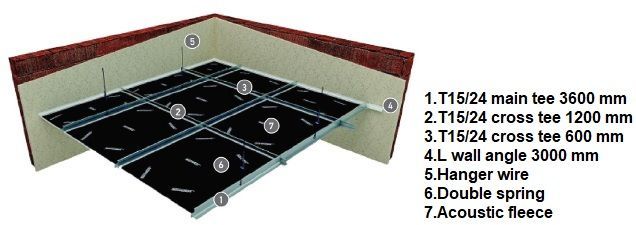

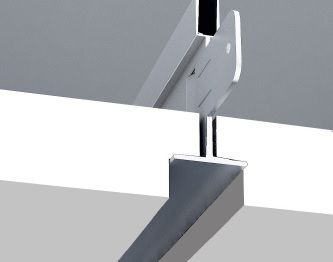

Our Lay-In system is formed by allowing aluminium or galvanised steel panels to rest on a T15 or T24 semi-exposed grid system. The main runners are visible but there is a shadow effect between the panels due to the tiles protruding below the grid. All panels are demountable without any special tools, so that the system enables fast and easy access to the ceiling plenum.

Video Installation

DATAH SHEET

Panel Type                          0.5 ~ 0.7 mm aluminium or                                                         galvanised steel


Panel Size                           300 mm x 300 mm

                      600 mm x 600 mm

                      600 mm x 1200 mm


Grid System                      T15/24 exposed grid


Perforation                         Full perforated,

                                           5 cm - 10 cm bordered,

                      non-perforated

                      Ø 1.0 mm - Ø 1.5 mm

                      Ø 1.8 mm - Ø 2.5 mm


Under Acoustic Felt          Local, Soundtex, Royalin,

                                           Lantor acoustic and

                                           non-flammable, felt options


Certifications:                   CE - UKCA - ISO

Data Sheet


Panel Type:                   0.5 ~ 0.7 mm aluminium                                            or galvanised steel


Panel Size:                     300 mm x 300 mm

                  600 mm x 600 mm

                  600 mm x 1200 mm


Grid System:                 T15/24 exposed grid


Perforation:                   Full perforated,

                                       5 cm - 10 cm bordered,

                  non-perforated

                  Ø 1.0 mm - Ø 1.5 mm

                  Ø 1.8 mm - Ø 2.5 mm


Under Acoustic Felt:     Local, Soundtex, Royalin,

                                       Lantor acoustic and

                                       non-flammable,

                                       felt options


Certifications:                CE - UKCA - ISO
