Open Cell System

OPEN CELL SYSTEM,

T15 EXPOSED

OPEN CELL SYSTEM,

T15 EXPOSED

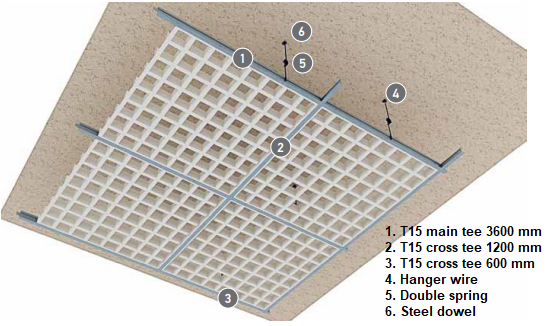

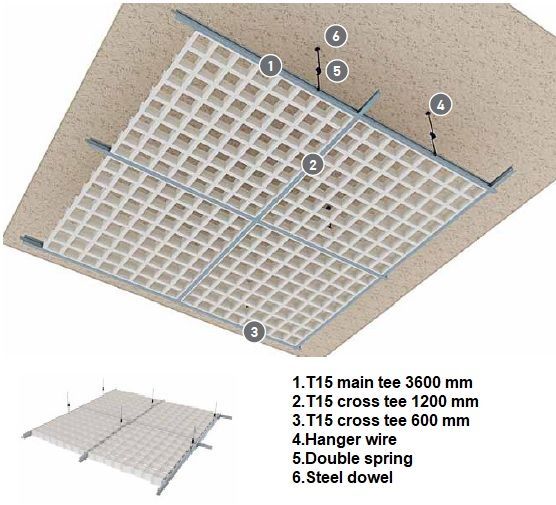

T15 Open cell ceilings create an even plenum to cover services and generate an open ceiling where aluminium panels are combined to create equal cells and then allowed to rest on standard T15 profiles.

DATA SHEET

Material                       0.4 mm ~ 0.8 mm aluminium

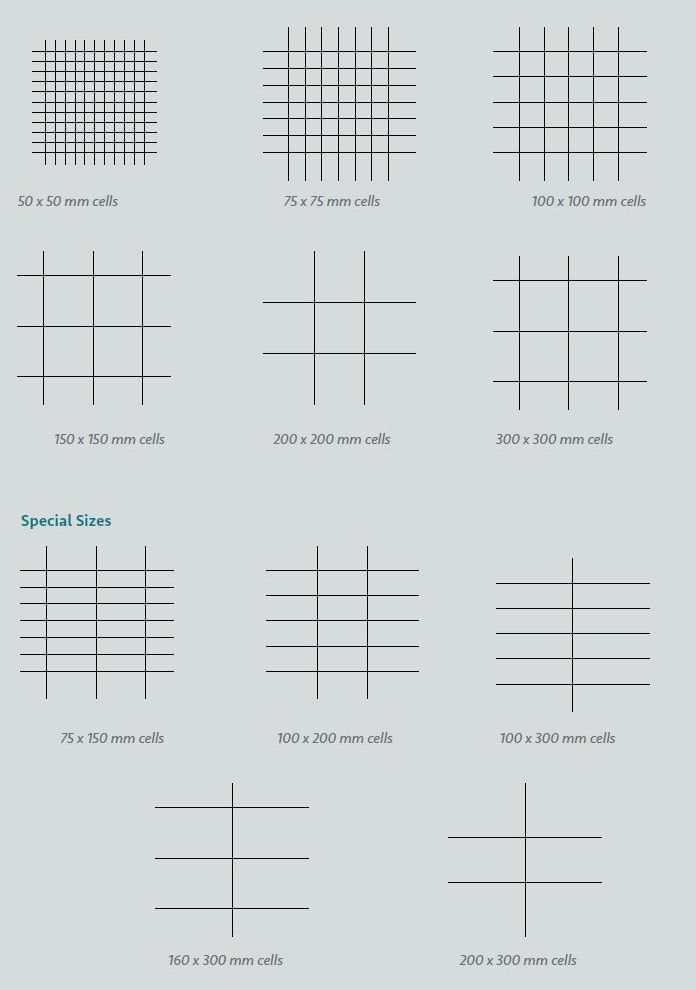

Cell Size                       50 - 60 - 75 - 100 - 150 mm

U Profile width base    9 - 10 -15 mm

U Profile height           40 mm

Suspension System     T15

Colour                          All RAL Range

Certification                CE - UKCA - ISO

Data Sheet


Material:                       0.4 mm ~ 0.8 mm                                                      aluminium


Cell Size:                       50 - 60 - 75 - 100 -                                                  150 mm


U Profile width base:   9 - 10 -15 mm


U Profile height:          40 mm


Suspension System:    T15


Colour:                         All RAL Range


Certification:               CE - UKCA - ISO
